ECG Device Cardioline 200S 12 Leads

Cardioline

ECG Device Cardioline 200S 12 Tracks
ECG Device Cardioline 200S 12 Tracks

Cardioline

ECG Device Cardioline 200S 12 Leads

classified in : Electrocardiographs

delivered on 26/05/2021

Ref : 80609574

£ 1589.20 Excl. VAT

2242.00

+ -
Add to Cart
Description

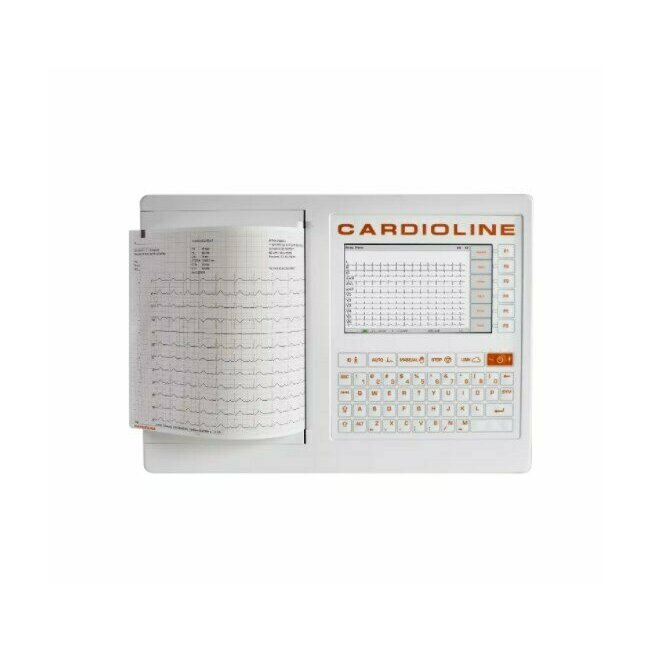

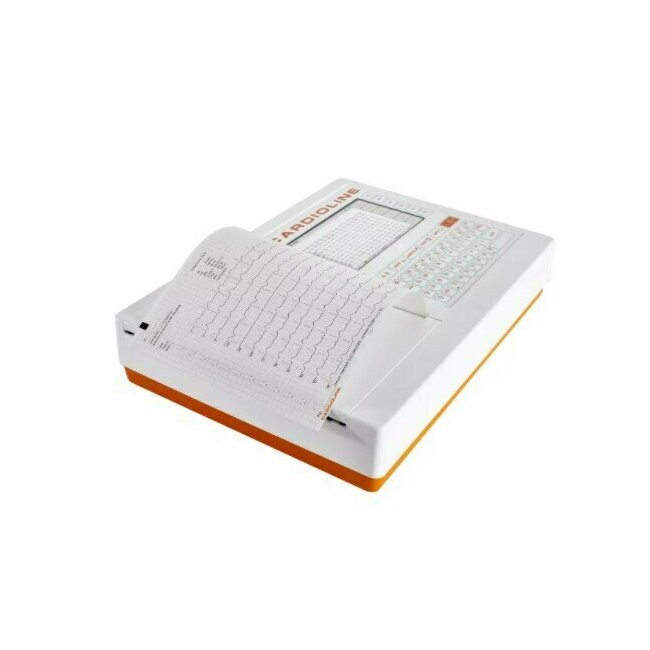

Robust, versatile and easy to use, the Cardioline 200S 12 tracks ECG device displays signals, acquires data, prints and records ECG traces.
Suitable for both children and adults, the device is suitable for stationary or mobile use.


Features of the Cardioline 200S 12 channel ECG Device :

- Compact and lightweight, it is ideal for ambulatory use as the unit can run for 5 hours on battery power, which corresponds to 500 ECGs.
- 3 modes: Automatic (12 leads), Manual (3 or 6 leads) or STAT (12 leads).
- Capable of recording up to 100 ECGs.
- Function keys and full alphanumeric keypad.
- USB port for data export in SCP or PDF format.
- Built-in thermal printer (3, 6 or 12-lead printing on A4 paper).
- Optional Glasgow Algorithm (one of the best for ECG interpretation, takes into account gender, age etc).


Technical Characteristics :

- 7-colour backlit LCD screen (800 x 480 px)
- Dimensions: 396 x 290 x 80 mm
- Weight: 2.6 kg
- Power supply: 220v mains / rechargeable battery (autonomy of 500 ECG)
- 12 derivations
- Sampling frequency: 500 samples/second/channel
- A/D converter: 24 bit, 32 Khz
- DC input impedance: 100MΩ
- Bandwidth: 0.05 to 150 Hz ;
- Defibrillation protection: ANMI/IEC standard
- AC filter: adaptive digital filter 50/60 Hz



Supplied with :

- ECG ruler
- User manual
- Power cable 10A
- Universal adapter for 4mm plug 10pcs
- Disposable electrodes, bag of 100 units
- IEC ECG patient cable, 10 leads, 4mm plugs
- ECG paper z-fold 210 x 297 x 180 sheets

> WARRANY : 2 YEARS



Any questions ? Contact us at contact@cardiodepot.eu
