Description

The DT100 suction electrode system from the German manufacturer Strässle & co is renowned for its reliability and ease of use.
The DT100 model, in contrast to the DT80 model, is ideal for the stress test thanks to its unparalleled suction power.
The device allows a perfect adhesion of the electrodes on any type of skin, even at low pressure.
Made in Germany.

Two models available

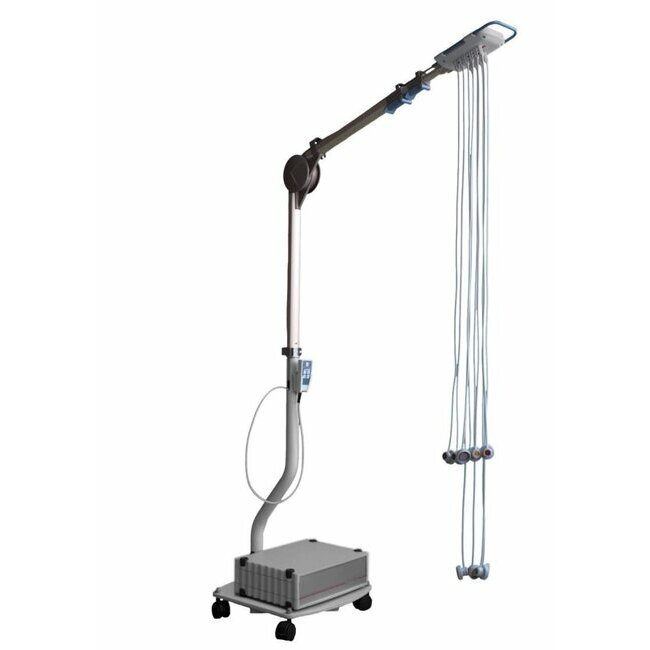

- Model DT100 T with arm mounted on a wheeled stand :
Extendable arm. The telescopic stand can be stored after an examination. Ideal for limited space.

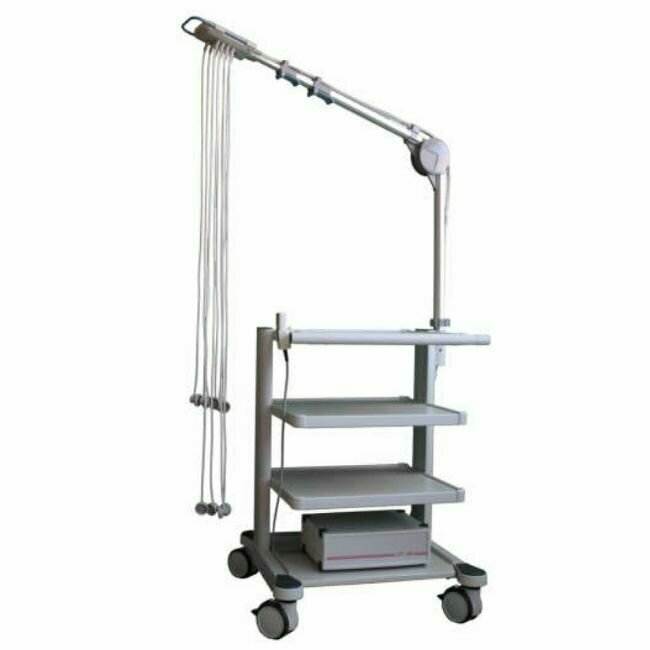

- Model DT100 TI with 4-tray trolley :
Extendable shelves and drawers for more convenience.

Technical characteristics

- Optimal adhesion, even on strong pilosity or prominent bones
- Power supply: 230 V~ 50/60 Hz; 50VA
- Vacuum range: 60-260 mbar
- Suction levels: 4
- Power and status indication
- Integrated defibrillation protection
- Rotation range: 315
- Working distance: 120 to 240 cm
- Interchangeable silicone suction cups

System content

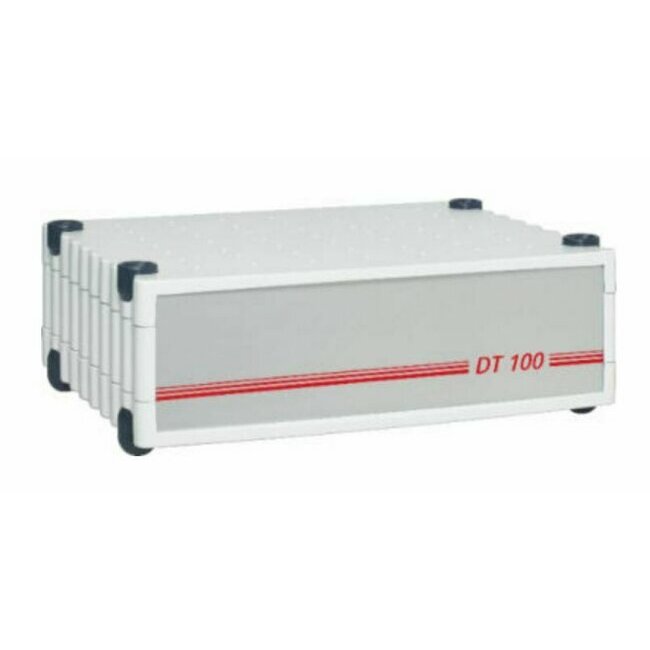

- 1 DT100 suction unit
- 6 electrodes per 1m suction
- 4 electrodes per 1.3m suction
- 1 mounted arm

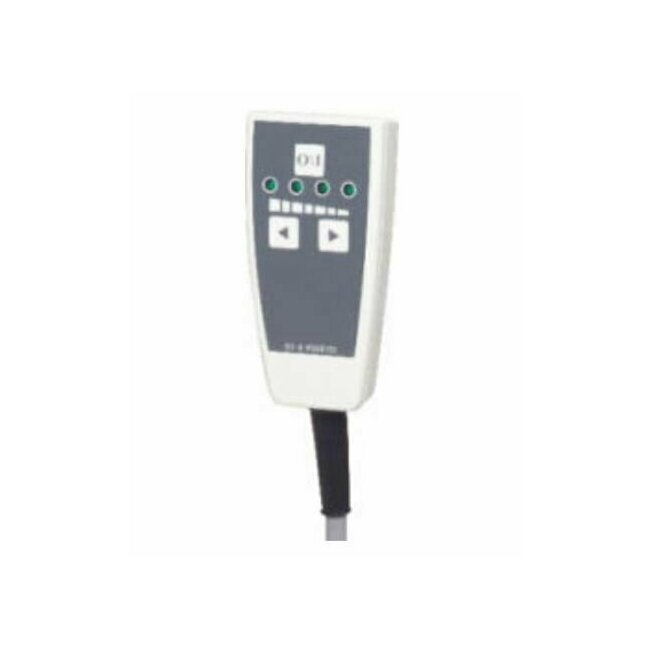

- 1 control unit with stand
- 1 power cable
- 1 ECG spray 250ml
- 1 single or 4 tray trolley (depending on the model chosen)

> For a precise quote with one of these options, please contact us directly by email at contact@cardiodepot.eu.
> Additional shipping costs depending on the model chosen.
